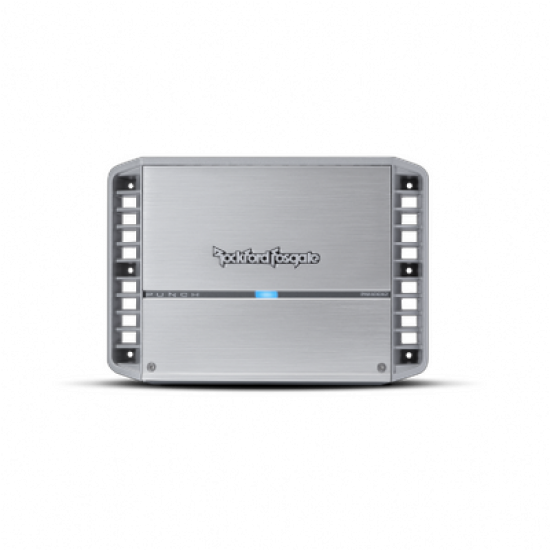

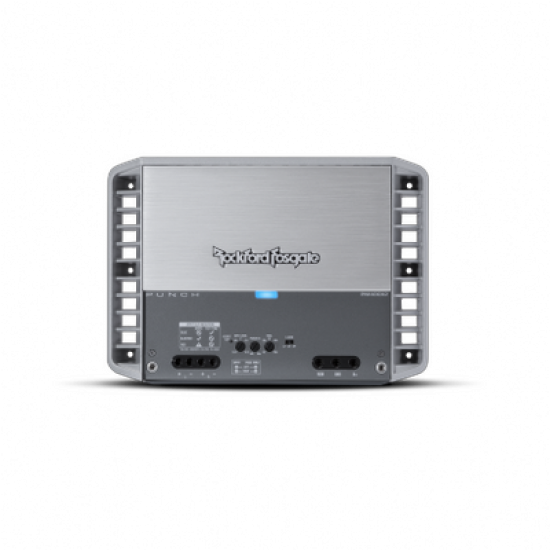

Rockford Fosgate PM400X2 Punch Marine 400 Watt 2-Channel Amplifier

Rockford Fosgate PM400X2 Punch Marine 400 Watt 2-Channel Amplifier

Ürün Açıklaması:

    Rockford Fosgate PM400X2 Punch Marine 400 Watt 2-Channel Amplifier bir çift koaksiyel hoparlör, bileşen hoparlör veya tek bir subwoofer kullanmak istiyorsanız PM400X2 sağlam bir seçimdir. Amplifikatör, tüm hoparlörlerde pasif geçişler (birlikte verilmez) kullanıldığında aynı anda stereo / mono modunda da çalıştırılabilir.Kanıtlanmış PUNCH teknolojisi ile Rockford Fosgate PM400X2 Punch Marine 400 Watt 2-Channel Amplifier, küçük bir tasarımdan gerçek Rockford Fosgate gücü sunar ve orta büyüklükteki her sistemi barındıracak şekilde esnektir.

Ürün Özellikleri:

• High level input capable with Auto Turn-On circuit
• RCA pass-thru outputs
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on
• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• 2-Year Warranty
•

• Recommended Fuse (not included)50 A
• Operating Voltage9 - 16 VDC
• Suggested Alternator75 A
• Input Sensitivity150 mV - 12 V
• BridgeableYes
• CEA-2006 CompliantCEA-2006 GuidelinesCEA-2006 Power Rating
• 125W x 2 @ 4Ω
• ≤1.0% THD+N
• Crossover ControlsHigh-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
• Low-Pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
• All-Pass: Yes
• Signal InputHi/Low Level: 1 RCA Pair
• Signal OutputLow Level: 1 RCA Pair
• Power Input Connector : Captive C-Clamp
• Speaker Output Connector : Captive C-Clamp
• Speaker Wire Gauge : 8 AWG to 18 AWG
• Cooling : Convection
• Remote Controls : Optional Punch Level Control (PLC2) Ready
• Dimensions : (H x W x D)2.38 x 7.76 x 9.86 (in) 6.05 x 19.71 x 25.04 (cm)
• Dynamic Power : (PVC/PowerCube®)120 Watts x 2 @ 4-Ohms 0° Res 203 Watts x 2 @ 2-Ohms 0° Res
• Total Harmonic Distortion : (THD+Noise)4-Ohm: <1.0% 2-Ohm: <1.0%
• Max. Current Draw (13.8V Sinewave)45 A
• Rated Power: (RMS Continuous Power)125 Watts x 2 @ 4-Ohm 200 Watts x 2 @ 2-Ohm 400 Watts x 1 @ 4-Ohm Bridged
• Number of Channels 2
• Total Power (Sum of Rated Power) 400 Watts
• Tone Controls0dB to +14dB @ 12.5kHz 0dB to +18dB @ 45Hz
• Power Wire Gauge8 AWG to 4 AWG
• Heat Sink TypeDie Cast Aluminum
• Visual IndicatorsPower/Protect/Thermal LED Input Clip LED3 Output Clip LED1,2,3 LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
• Circuit Topology ClassClass A/B
• Frequency Response 20Hz-20kHz
• Shipping Weight9.5 Lbs. (4.3 Kg.)
• Efficiency (average)69% @ 4-Ohm
• Average Current Draw (13.8V Music)23 A
