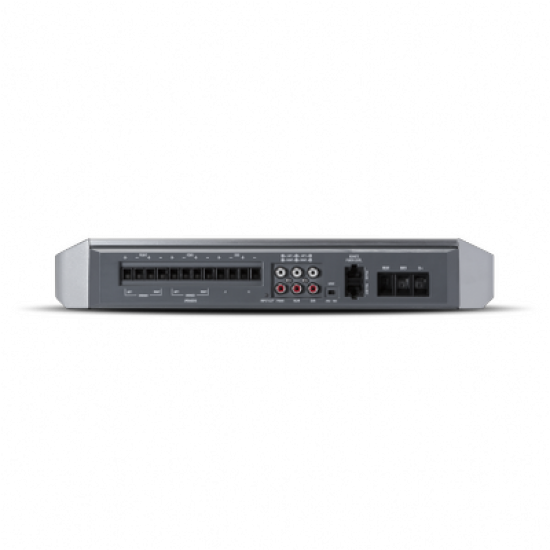

Rockford Fosgate PM1000X5 Punch Marine 1000 Watt Class-bd 5-Channel Amplifier

Rockford Fosgate PM1000X5 Punch Marine 1000 Watt Class-bd 5-Channel Amplifier

Ürün Açıklaması:

    Rockford Fosgate PM1000X5 Punch Marine 1000 Watt Class-bd 5-Channel Amplifier toplamda 1.000 Watt tam aralıklı 5 kanal, tüm sisteminizi çalıştırmak için ihtiyaç duyacağınız tek amplifikatördür. Ön arka hoparlörlerin herbirine ayrı kanallardan ve subwooferı ayrı kanaldan sürebileceğiniz 5 kanalla sisteminizi başka bir amplifikatöre ihtiyaç duymadan  çalıştırın. Rockford Fosgate PM1000X5 Punch Marine 1000 Watt Class-bd 5-Channel Amplifier, termal, aşırı akım ve kısa devre koruma ile birlikte daha yüksek bir verimlilik sunar.

Ürün Özellikleri:

• High level input capable with Auto Turn-On circuit
• Features C.L.E.A.N. Set-up
• Optional remote Punch Level Control (PLC2) ready (w/ input clip indicator)
• 12dB/octave Butterworth crossover
• On-board Punch EQ with +18dB boost @ 45Hz
• Muted turn on
• Stealth top mounted control panel
• Cast aluminum heatsink
• Short circuit protection
• Over current protection
• Infrasonic filter
• 2/4 channel input switch
• Marine grade two part epoxy coating on circuit boards
• Marine grade stainless steel hardware
• 2-Year Warranty

• Input Sensitivity : 150 mV - 12 V
• Operating Voltage : 9 - 16 VDC
• Number of Channels : 5
• CEA-2006 CompliantCEA-2006 GuidelinesCEA-2006
• Power Rating : 75Wx4 + 150Wx1 @ 4Ω ≤1.0% THD+N
• Tone ControlsSub: 0dB to +18dB @ 45Hz
• Signal InputInput Switch: Hi/Low level input
• Input Switch: 2/4 channel input
• Hi/Low Level: 3 RCA Pair
• Sub: front/sub input switch
• Signal Output-
• Power Input Connector Block
• Power Wire Gauge : 4 AWG
• Speaker Output ConnectorBlock
• Speaker Wire Gauge : 12 AWG
• Visual Indicators :Power/Protect/Thermal LED
• Input Clip LED3
• Output Clip LED1,2,3
•

• LED Color Legend: 1BLUE: <0.5% THD 2VIOLET: 1% THD 3RED: 10%+ THD
• Dimensions (H x W x D)2.38 x 7.76 x 15.03 (in) 6.05 x 19.71 x 38.18 (cm)
• Total Harmonic Distortion (THD+Noise)<1.0%
• Average Current Draw (13.8V Music)75 A
• Max. Current Draw (13.8V Sinewave)150 A
• Recommended Fuse (not included)150 A
• Suggested Alternator100 A
• Rated Power (RMS Continuous Power)75 Watts x 4 + 150 Watts x 1 @ 4-Ohm 125 Watts x 4 +300 Watts x 1 @ 2-Ohm
• N/A +500 Watts @ 1-Ohm

• Total Power (Sum of Rated Power) 1000 Watts
• Bridgeable Yes (front/rear channels)
• Crossover ControlsFront: 50Hz - 250Hz High-Pass @ 12dB/Octave
• Rear: 50Hz - 250Hz High-Pass @ 12dB/Octave
• Sub: 50Hz - 250Hz Low-Pass Sub: 28Hz infrasonic filter @ 12dB/Octave
• Heat Sink Type Cast
• Cooling : Convection
• Remote Controls : Optional Punch Level Control (PLC2) Ready
• Circuit Topology Class : Class A/B + Class BD (Sub)
• Frequency Response : Front/Rear: 20Hz - 20kHz +/-3dB - Sub:20Hz-500Hz+/-3dB
• Shipping Weight :15.3 Lbs. (6.93 Kg.)
• Dynamic Power :
• (PVC/PowerCube®)115 Watts x 4 +
• 299 Watts x 1 @ 4-Ohms 0° Res
• 190 Watts x 4 +
• 540 Watts x 1 @ 2-Ohms 0° Res
• N/A +
• 863 Watts x 1 @ 1-Ohm 0° Res
• Efficiency (average)Front/Rear: 66% @ 4-Ohm

• Sub Channel: 80% @ 4-Ohm
